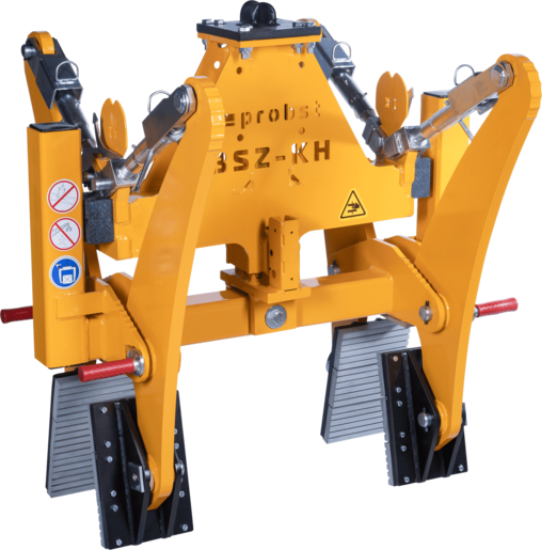

BSZ-KH Concrete Highway Divider Clamp

With this device, mechanical barrier walls can be clamped with absolute safety without leaving any marks on the concrete parts. Even densely stacked asymmetrical elements can be lifted and installed easily due to the slim design of the gripper. Therefore, more barrier elements can be loaded and transported on trucks, which significantly reduces costs!

  • Fast, smart, efficient, flexible and fully automatic, the Pipe Clamp is used to lift concrete pipes. No power, slings, chains or manual assistance is required during the entire lifting process. The narrow profile allows for easy and tight installation of concrete pipes into the trench. With mechanical clamping, the pipes are held tightly to increase the accuracy of material placement. The user does not need to clamp and place the pipes during the work. Therefore, this pipe clamp works completely reliably and safely.

    Advantage:

    •  High potential for rationalizing labor costs
    •  Fast repeating sequences
    •  Auto release to convert from "full" to "empty"
    •  Leaves no black marks

    Features:

    • Automatic closing and unlocking

    • Strong electrostatic paint

    Specifications



    (mm-kg)

    (inch-lbs)

    Clamp amplitude300 - 120012'' - 47''
    Pipe length250098.4''
    Load40008818
    Net weight7601675
    Total weight  9202028
    Packing size      2000x830x2200    78.7''x32.7''x86.6''
